Tape Clip
Material - Copper / Brass / Aluminum
These are used with Bare Copper Tape. Used to support Tape to structure.

Conductor Size mm Product Code
20 x 3 ATC - 203
25 x 3 ATC - 253
50 x 6 ATC - 506

DC Tape Clip
Material - Gunmetal / Brass
These are used with Bare Copper Tape Conductor. Used to secure Tape to structure.

20 x 3 ADTC - 203
25 x 3 ADTC - 253
25 x 4 ADTC - 254
25 x 6 ADTC - 256
40 x 3 ADTC - 403
40 x 6 ADTC - 406
50 x 3 ADTC - 503
50 x 6 ADTC - 506

Square Tape Clamp
Material - Gunmetal / Brass
These are suitable for 4 Way Connections, Straight, Through or Tee Joints for Copper Tape.

25 x 3 ASTC - 253
25 x 4 ASTC - 254
25 x 6 ASTC - 256
50 x 6 ASTC - 506

Oblong Test Clamp
Material - Gunmetal / Brass
These are used with Bare Copper Tape. Suitable for straight through tape joint.

25 x 3 AOT - 253
40 x 6 AOT - 406
50 x 6 AOT - 506

Plate type Test Clamp / Test Bond
Material - Gunmetal / Brass / Aluminium
These are used for 4 way Copper Tape Connection.

25 x 3 ATBC - 253

Screwdown Test Clamp
Material - Gunmetal / Brass
These are used for fixing 2 Way Copper Tape.

Conductor Size mm

Product Code

25 x 3

ASDTC - 253


Glazing Bar Holdfast
Material - Gunmetal / Brass
These are secured to Glazing Bar, Steel Frame, Girdles etc. The Item is designed for use with appropriate size of metallic or non - metalic conductor fixing.

25 x 3 12 AGBH - 12

Back Plate Holdfast Stem
Material - Gunmetal / Brass
Product Code – ABPH - 12
For use with appropriate DC Tape Clip. It is used when the installation requires the tape to be secured 75 mm away from the face of the wall.

Rod to Tape Coupling
Material - Gunmetal / Brass
Used to secure elevation rod by means of a bolted connection.


15 5/8" / 16 Copper ART - 16C
15 5/8" / 16 Aluminium ART - 16A
17.2 3/4" / 19 Copper ART - 19C
17.2 3/4" / 19 Aluminium ART - 19A

Cable to Tape Junction Clamp
Material - Gunmetal / Brass
These are used for connecting Copper Tape to Cable.

25 x 3 50 ACTJ - 253

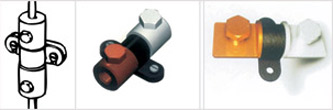

Bi - Metalic Connector
Material - Aluminium / Cpper
Fasteners - Brass / Copper / Stainless Steel
These are used for joining Aluminium & Copper Tape, Circular Conductors, particularly when Copper is used as earthing in Aluminium lightning protection systems.


8 mm Dia. Al
to 8 mm Dia. Cu
ABI – 8
8 mm Dia. Al
to 25 x 3 Cu tape
ABI - 825
20 x 3 Al Tape
to 25 x 3 Cu Tape
ABI - 203
20 x 3 Al Tape
to 25 x 3 Cu Tape
ABI - 253

Cast Ground Plate or Earth Plate
These Plates when used in concrete structures offer convenient ground system connection point. They are used where reinforcing bars are electrically continous & are to be used as down conductors. These earth points allow easy access for the lightning protection & earthing system.


A 120 2 Hole ACCP - 2120
B 120 4 Hole ACCP - 4120
B 240 4 Hole ACCP - 4240
C 240 4 Hole ACCPL - 4240
