Home » Products » Earthing & Electrical Protection » Circular Conductor System


One Hole Cable Clip
Material - Electrolytic Copper
These are recommended to fix cable conductors.

For Solid Conductor For Stranded Conductor
Size MM Product Code Size mm2 Product Code
8 AOH - 8 50 AOH - 50
10 AOH - 10 70 AOH - 70
12 AOH - 12 95 AOH - 95
16 AOH - 16 - -

Heavy Duty Cast Cable saddle
Material - Gunmetal / Brass
These are used with 8 mm conductor or for supporting Air Terminals when used in conjuction with wall mounted Air Terminal base.

8 ADCC - 8 50 ADCC - 50
10 ADCC - 10 70 ADCC - 70
12 ADCC - 12 95 ADCC - 95
16 ADCC - 16 - -

Test Clamp
Material - Gunmetal / Brass
Used in overlapping joints.

50 ATC - 50
70 ATC - 70
95 ATC - 95

Square Conductor Clamp
Material - Gunmetal / Brass
Suitable for 4 way connection, straight, through or tee joints for Round Conductors.

35 ASCC - 35
50 ASCC - 50
70 ASCC - 70
95 ASCC - 95

Tee Clamp
Material - Gunmetal / Brass
These are used for forming & bonding Tee joint for conductor.

8 Cu ATEC - 8C
8 Al ATEC - 8A

Side Mounting Rod Bracket
Material - Gunmetal / Brass
Above Bracket provides a 75 mm projection from the face of a wall. Manufactured either in Gunmetal or Brass.

16 ASM -10
20 ASM -10

Jointing Clamp
Material - Gunmetal / Brass
These are used for forming straight through joints.

8 Cu AJC - 8C
8 Al AJC - 8A

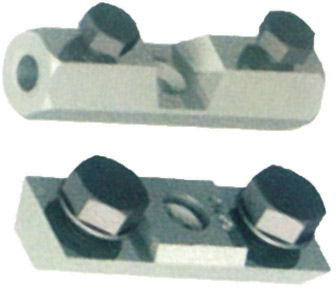

Universal Cable Connector
Material - Stainless Steel / Brass
These are used for connecting Cable Conductors.

70 AUDC - 70
95 AUDC - 95
120 AUDC - 120

Re-Bar Clamp
Material - Gunmetal / Brass
Used for bonding to handrails, re-inforcing bars, pipes etc.

8mm 8-18mm Copper ARBC - 818
8mm 8-38mm Copper ARBC - 838

Metalwork Bonding Clamp
Material - Copper / Aluminum
Product Code - AMWBC - 1
Used for bonding circular conductors to metal surfaces. These can be fixed to the metal surface by using bolts & nuts or by welding onto the metal surface.


Metalwork Bond
Material - Gunmetal / Brass
Used for connecting to all types of metal structures upto 13mm thickness.

8mm2 AMWB - 8

Straight Setscrew type cable socket
Material - Gunmetal / Brass
Used for Bonding Copper & Aluminum Conductors to steel work.

8mm2 ASCS - 8

Air Terminal Base - Cable
Material - Gunmetal / Brass
Used for mounting of air rods either horizontally or vertically..

Vertical 8 mm 10 mm ATBV - 810
Horizontal 8 mm 10 mm ATBH - 810

Flat Saddle - C
Material - Gunmetal
Used for supporting taper pointed or blunt air rods with circular conductors on flat surface.

50 15 16 AFSC - 50
70 15 16 AFSC - 70
95 15 16 AFSC - 95

Anti - Vandal Conductor Guard

3000 ACG - 30

Brass Comb Clamp
Material - Brass / Copper Alloy

3 - 5 1 Bolt ACMP - 1
6 - 8 1 Bolt ACMP - 2
9 - 12 1 Bolt ACMP - 3
3 - 5 2 Bolt ACMP - 4
6 - 8 2 Bolt ACMP - 5
9 - 12 2 Bolt ACMP - 6
12 - 14 2 Bolt ACMP - 7
14 - 16 2 Bolt ACMP - 8

Nero Clip - Snap On Holder
(for attaching wire to wall)
Snap - on mechanism & Base Made of Metal
Type AFL: Fixed conductor holder.
Type AIL: Loose conductor holder.


Stainless Steel / Stainless Steel 7.0 8.0 Type AFL ANC - 1
Stainless Steel / Stainless Steel 7.0 8.0 Type AIL ANC - 2
Stainless Steel Coppered / Copper 7.0 8.0 Type AFL ANC - 3
Stainless Steel Coppered / Copper 7.0 8.0 Type AIL ANC - 4
Stainless Steel / Stainless Steel M6 8.0 Type AFL ANC - 5
Stainless Steel / Stainless Steel M6 8.0 Type AIL ANC - 6
Stainless Steel Coppered / Copper M6 8.0 Type AFL ANC - 7
Stainless Steel Coppered / Copper M6 8.0 Type AIL ANC - 8

Universal Clamp
Universal use as T, Cross, Parallel & Thrust Clamp

Specification Product Code
Galvanized Steel AUC - 23
Stainless Steel AUC - 24
Copper AUC - 25

Saddle Clamp With Base
Material - Brass / Copper / Aluminium

8.0 - 10.0 A ANT - 019
16.0 A ANT - 020
7.0 B ASC - 003
7.0 B ASC - 004

Clamp Connector - Straight
Material - Brass

10/50 4 10 10 70 ACCS - 70
25/120 6 14 16 120 ACCS - 120
70/150 10 16 25 150 ACCS - 150
150/240 14 20 120 240 ACCS - 240
240/400 20 24 240 400 ACCS - 400

Clamp Connector - 900
Material - Brass

Size
Min. Max. Min. Max.
10/50 4 10 10 70 ACCD - 70
25/120 6 14 16 120 ACCD - 120

Mechanical Connector for Copper Cable - Straight
Material - Brass

10/50

4

10

10

70

AMCS - 70

25/120

6

14

16

120

AMCS - 120

70/150

10

16

25

150

AMCS - 150


Mechanical Connector for Copper Cable - 900
Material - Brass

Min.

Min.

10/50

4

10

10

70

AMCD - 70

25/120

6

14

16

120

AMCD - 120

70/150

10

16

25

150

AMCD - 150


T Rail Base

Rail + Base Rail


Roof Conductor Holder With Niro - clip
(For attaching wire to wall)
Fits all the sizes, universally adjustable wire attachment.


Holder Sizes in mm Product Code
Steel / Galvanised / Varnished Niro - Clip 8.0 Type AFL ANC - 011
Steel / Galvanised / Varnished Niro - Clip 8.0 Type AIL ANC - 012
Steel / Galvanised / Varnished Niro - Clip 8.0 Type AFL ANC - 013
Steel / Galvanised / Varnished Niro - Clip 8.0 Type AIL ANC - 014
Stainless steel Stainless Steel 8.0 Type AFL AURCH - 01
Copper Stainless Steel 8.0 Type AIL AURCH - 02
Stainless Steel Plastic 8.0 Type AFL AURCH - 03
Copper Plastic 8.0 Type AIL AURCH - 04

Puddle Flange
Material - Copper / Aluminium
For taking Lightning Conductors through roofs etc.

Copper

APEC - 01

Aluminium APFA - 02

Floor Ground Receptacles
Material - Bronze / Copper Alloy.
Floor Ground Receptacle of Heavy Duty Construction. Receptacle furnished for all size Ground Rods, either plain or threaded.

Size Product Code
1/2” AFGR - 12
5/8” AFGR - 16
3/4” AFGR - 20



Equipotential Bonding Bars
Equipotential Bonding Bar with Plastic & Base suitable for connecting.

Specifications -
With Plastic Cover & Base

1 Tape Terminal 30 x 5mm or Conductors 8 - 10mm2.
7 x one or multi - wired conductors to 6mm2 to 25mm2.
