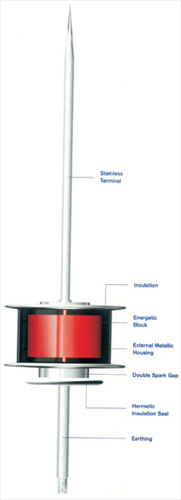

"T" Series

	EC-SAT 250	EC-SAT 500	EC-SAT 750	EC-SAT 1000
Manufacturing Material	Stainless Steel AISI 316 (18/8/2) Internat. Norm Stainless Steel UNE 36-016-75 Spanish norm
Insulating	Poiletaflouretilence
Isolation	With Capsule in resin
Electric Generator Transformer	Generates high voltage impulses
Electronics	Energetic block in a capsule
Spark Gap	Double (normal and controlled atmosphere)
Number of Spark Gaps	2	2	2	2
Faradise Protection	With metallic external housing
Total Length (mm)	800	800	800	800
Energetic Block Length (mm)	100	110	114	118
Total Diameter (mm)	170	170	170	170
Weight (kg)	4.5	4.5	4.8	5
Supply Energy	It doesn’t need external supply conventional. Only the atmosphere gradient.
EC-SAT Symbol	Electro Condenser with triggering device
Current Test 100KA	WAVE 10/350 µs

*Fields marked in Red are same for both EC-SAT and “T” SERIES

	TA	TT	TO	TI	TL
Number of Spark Gaps	2	2	2	2	2
Total Length (mm)	625	625	625	625	625
Energetic Block Length (mm)	75	75	80	80	90
Total Diameter (mm)	148	148	148	148	148
Weight (kg)	4.2	4.2	4.2	4.2	4.2
Norms	UNE – 21185 / 21186 / 21308 NF – 17102 / TELEFONICA / CEI - 1024
