Our Products

Cable Lugs & Terminals


Home » Products » Cable Lugs & Terminals » Tinned Copper Flexible Braids - Crimped With Connectors / Terminals

MATERIAL
FINISH
- E - COPPER
- ELECTRO TINNED
Size mm2 Dimensions (mm2) Current Rating AMP Product Code

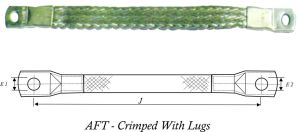

(Crimped with Lugs)		 Product Code

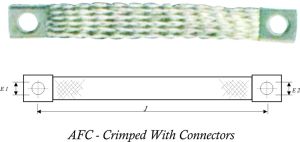

(Crimped with Connectors)
J E1 E2
4 50 6 6 50 AFT4 - 50 - 50 AFC4 - 50 - 50
  100 6 6 50 AFT- 100 - 50 AFC4 - 100 - 50
  150 6 6 50 AFT4- 150 - 150 AFC4 - 150 - 50
  200 6 6 50 AFT4 - 200 – 50 AFC4 - 200 - 50
10 50 6 6 90 AFT10 - 50 -90 AFC10 - 50 - 90
  100 6 6 90 AFT10 - 100 - 90 AHC10 - 50 - 90
  150 6 6 90 AFT10 - 150 - 90 AFC10 - 150 - 90
  200 6 6 90 AFT10 - 200 - 90 AFT10 - 200 - 90
16 100 8.5 8.5 125 AFT16 - 100 - 125 AFC16 - 100 - 125
  150 8.5 8.5 125 AFT16 - 150 - 125 AFC16 - 150 - 125
  200 8.5 8.5 125 AFT16 - 200 - 125 AFC16 - 200 - 125
  250 8.5 8.5 125 AFT16 - 250 - 125 AFC16 - 250 - 125
  300 8.5 8.5 125 AFT16 - 300 - 125 AFC16 - 300 - 125
25 100 10 10 160 AFT25 - 100 - 160 AFC25 - 100 - 160
  150 10 10 160 AFT25 - 150 - 160 AFC25 - 150 - 160
  200 10 10 160 AFT25 - 200 - 160 AFC25 - 200 - 160
  250 10 10 160 AFT25 - 250 - 160 AFC25 - 250 - 160
  300 10 10 160 AFT25 - 300 - 160 AFC25 - 300 - 160
30 100 10 10 180 AFT30 - 100 - 180 AFC30 - 100 - 180
  150 10 10 180 AFT30 - 150 - 180 AFC30 - 150 - 180
  200 10 10 180 AFT30 - 200 - 180 AFC30 - 200 - 180
  250 10 10 180 AFT30 - 250 - 180 AFC30 - 250 - 180
  300 10 10 180 AFT30 - 300 - 180 AFC30 - 300 - 180
35 100 10 10 210 AFT35 - 100 - 210 AFC35 - 100 - 210
  150 10 10 210 AFT35 - 150 - 210 AFC35 - 150 - 210
  200 10 10 210 AFT35 - 200 - 210 AFC35 - 200 - 210
  250 10 10 210 AFT35 - 250 - 210 AFC35 - 250 - 210
  300 10 10 210 AFT35 - 300 - 210 AFC35 - 300 - 210
50 100 12 12 250 AFT50 - 100 - 250 AFC50 - 100 - 250
  150 12 12 250 AFT50 - 150 - 250 AFC50 - 150 - 250
  200 12 12 250 AFT50 - 200 - 250 AFC50 - 200 - 250
  250 12 12 250 AFT50 - 250 - 250 AFC50 - 250 - 250
  300 12 12 250 AFT50 - 300 - 250 AFC56 - 300 - 250


Also available with other hole sizes, current rating, lengths etc, as per customer specifications.
