Conductors

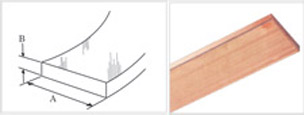

Bare Copper Tape
Material - High Conductivity Copper Tape to BS EN 13601 (Formely BS 1432)

Conductor Size mm	Product Code
12.5 x 1.5	AT - 1215
12.5 x 3	AT - 1253
20 x 1.5	AT - 2015
20 x 3	AT - 203
25 x 1.5	AT - 2515
25 x 3	AT - 253
25 x 4	AT - 254
25 x 6	AT - 256
30 x 3	AT - 303

Conductor Size mm	Product Code
30 x 6	AT - 306
38 x 3	AT - 383
38 x 5	AT - 385
38 x 6	AT - 386
40 x 4	AT - 404
40 x 6	AT - 406
50 x 3	AT - 503
50 x 4	AT - 504
50 x 6	AT - 506

*Add suffix "T" to the product code for "Tinned Copper Tape".

__________________________________________________________________________________________________

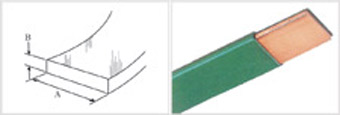

PVC Covered Copper Tape
Material - Electrolytic Copper

Conductor Size mm	Product Code
12.5 x 1.5	APT - 1215
25 x 3	APT - 253
25 x 6	APT - 256
38 x 6	APT - 386
50 x 6	APT - 506

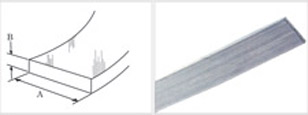

Bare Aluminum Tape
Material - Aluminum

Conductor Size mm	Product Code
12.5 x 1.5	AAT - 1215
25 x 3	AAT - 253
25 x 6	AAT - 256
38 x 6	AAT - 386
50 x 6	AAT - 506

Copper Bus Bar (Hard Drawn / Soft Drawn / Half Hard)
Material - High conductivity Copper Bar
* Lengths as per client’s request.
* Tinned Copper Bus Bar also available.

Conductor Size mm	Product Code
12 x 3	ADCB - 123
20 x 3	ADCB - 203
20 x 5	ADCB - 205
25 x 3	ADCB - 253
25 x 4	ADCB - 254
25 x 5	ADCB - 255
25 x 6	ADCB - 256
30 x 5	ADCB - 305
31 x 25	ADCB - 3125
38 x 3	ADCB - 383
38 x 4	ADCB - 384
38 x 6	ADCB - 386
40 x 3	ADCB - 403
40 x 5	ADCB - 405
40 x 6	ADCB - 406
40 x 10	ADCB - 401
50 x 5	ADCB - 505

Conductor Size mm	Product Code
50 x 6	ADCB - 506
50 x 10	ADCB - 5010
50 x 12	ADCB - 5012
60 x 5	ADCB - 605
60 x 8	ADCB - 608
60 x 10	ADCB - 6010
75 x 6	ADCB - 756
75 x 10	ADCB - 7510
75 x 12	ADCB - 7512
80 x 5	ADCB - 805
80 x 6	ADCB - 806
80 x 10	ADCB - 8010
80 x 12	ADCB - 8012
100 x 5	ADCB - 1005
100 x 6	ADCB - 1006
100 x 10	ADCB - 1010
100 x 20	ADCB - 1020

* Add suffix ‘T’ to the product code for Tinned Copper Bus Bar.

Bare Solid Circular Conductor

Conductor	Dia. (D) mm	Cross section area mm²	Product Code
Bare Copper	8	50.27	ABSC - 8C
Bare Aluminum	8	50.27	ABSC - 8A
PVC Copper	8	50.27	APSC - 8C
PVC Aluminum	8	50.27	APSC - 8A

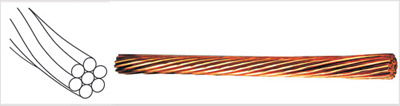

Bare Stranded Copper Conductors
Soft Drawn Cu Conductor to BS EN - 60228

Size mm²	Stranding No / mm	Product Code
6	7 / 1.04	ABCU - 6
16	7 / 1.70	ABCU - 16
25	7 / 2.14	ABCU - 25
35	7 / 2.52	ABCU - 35
50	19 / 1.78	ABCU - 50
70	19 / 2.14	ABCU - 70
95	19 / 2.52	ABCU - 95
120	37 / 2.03	ABCU - 120
150	37 / 2.25	ABCU - 150
185	37 / 2.52	ABCU - 185

PVC Covered Stranded Copper Conductors
PVC Covered Soft Drawn Cu Conductor to BS - 6004

Size MM2	Stranding No / mm	Product Code
16	7/1.7	APCU - 16
25	7/2.14	APCU - 25
35	7/2.52	APCU - 35
50	19/1.78	APCU - 50
70	19/2.14	APCU - 70
95	19/2.52	APCU - 95
120	37/2.03	APCU - 120
150	37/2.25	APCU - 150
185	37/2.52	APCU - 185
240	61/2.25	APCU - 240
300	61/2.52	APCU - 300
400	61/2.85	APCU - 400

Flexible Braid Bond
Material - Copper
Copper Flexible Braids are used for bonding gates, doors, fences etc.

Size mm	Cross Section Area	Hole Size mm	Hole Centre MM	Product Code
25 x 3.5	35 mm²	12	200	AFB - 252
25 x 3.5	35 mm²	12	300	AFB - 253
25 x 3.5	35 mm²	12	400	AFB - 254

Flexible Copper Braid
Material - High conductivity Copper Wire

Suitable for earth bonding. Also supplied as standard drilled & pre-cut bonds. Customer specific sizes & types of braid can be manufactured on order.
* Tinned Copper Flexible Braid also available
* Add suffix ‘T’ to the Product Code for Tinned Copper Flexible Braid

Please call our office for details.

Overall Nominal Equivalent Size mm	Size MM2	Product Code
12 x 1.5	8.4	ABB - 1215
12 x 3	16.8	ABB - 123
15 x 1.4	8.75	ABB - 1514
19 x 1.5	12.1	ABB - 1915
19 x 3.0	22.4	ABB - 1930
25 x 1.5	19.6	ABB - 2515
25 x 3.5	34.7	ABB - 2535
25 x 6	73	ABB - 256
32 x 1.5	36.5	ABB - 3215
32 x 3	42.1	ABB - 323
32 x 6	81.4	ABB - 326
38 x 3	53.3	ABB - 383
38 x 6	80	ABB - 386
50 x 3	70.2	ABB - 503
50 x 6	109.5	ABB - 506
50 x 12	280	ABB - 5012
75 x 6	140.4	ABB - 756
